Regular price $65.00
Material for worm reducer gearbox RV30:
Worm wheel: Nodular cast iron and bronze
Worm shaft: 20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mm
Housing: aluminum with oven painting
Color: silver or blue. send randomly if no mark left.

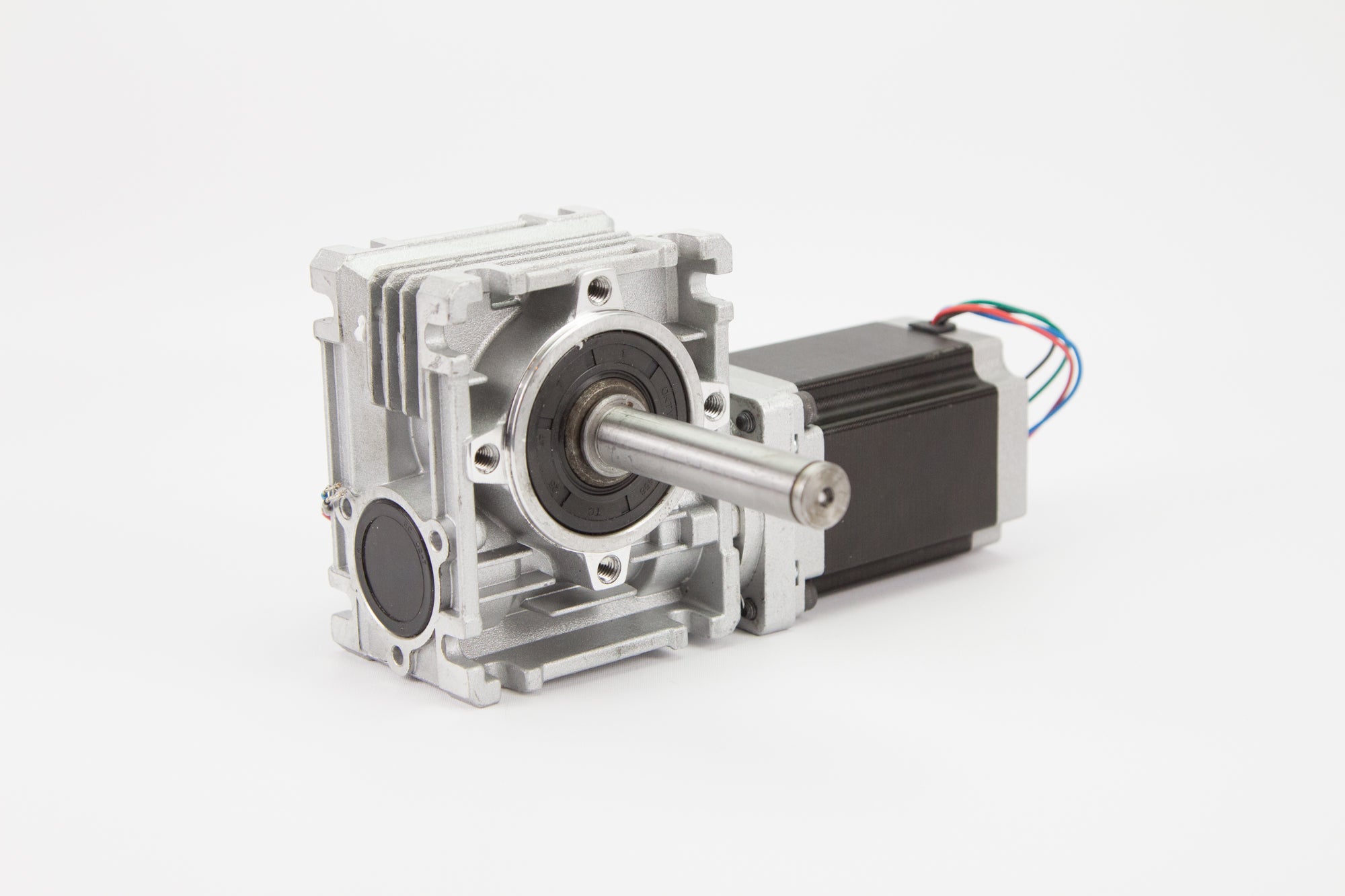

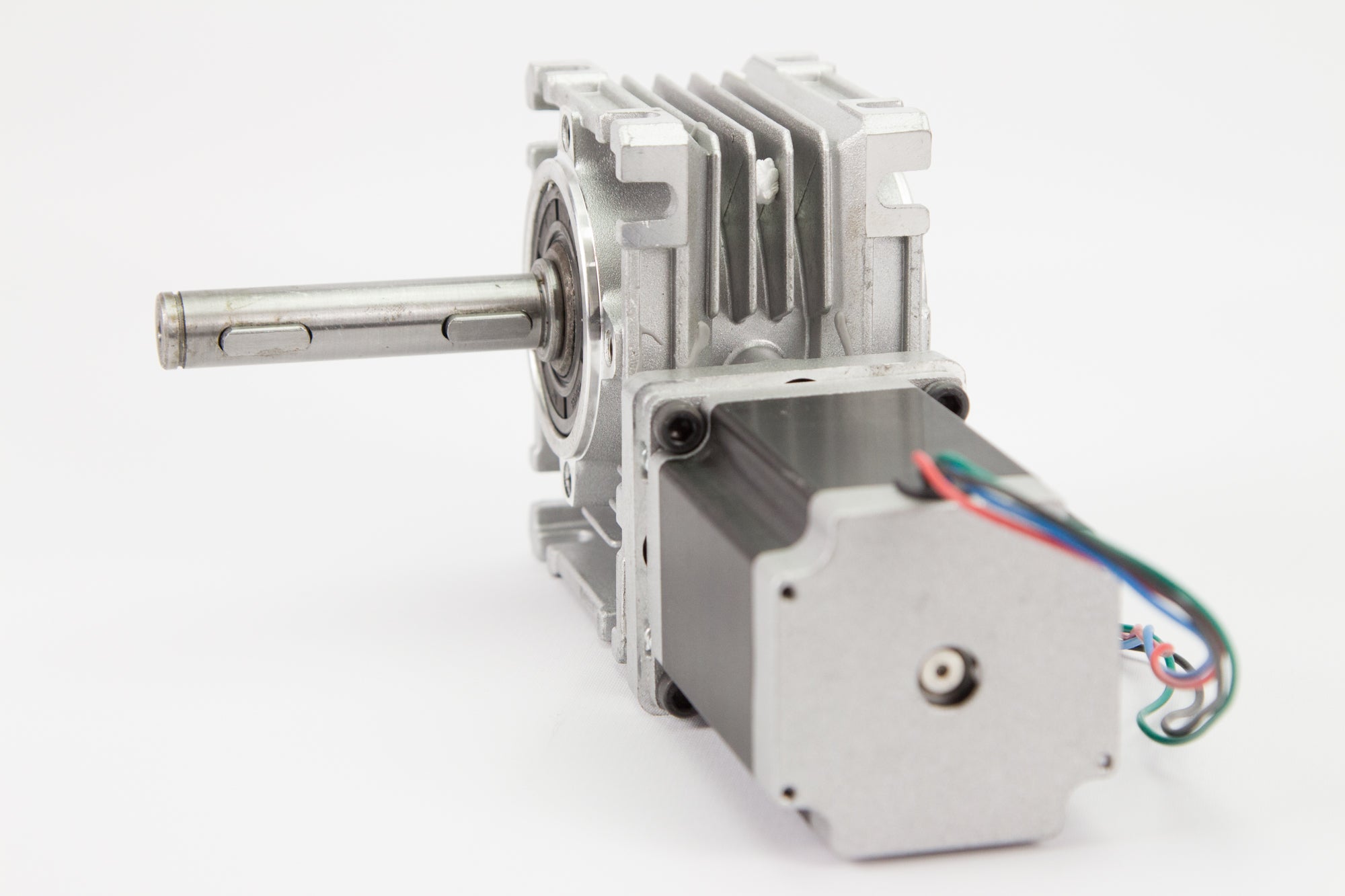

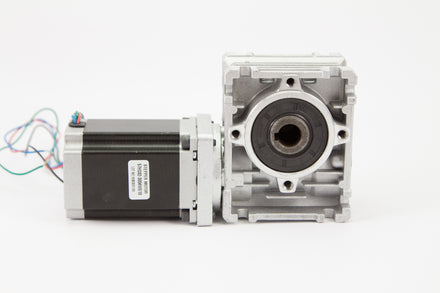

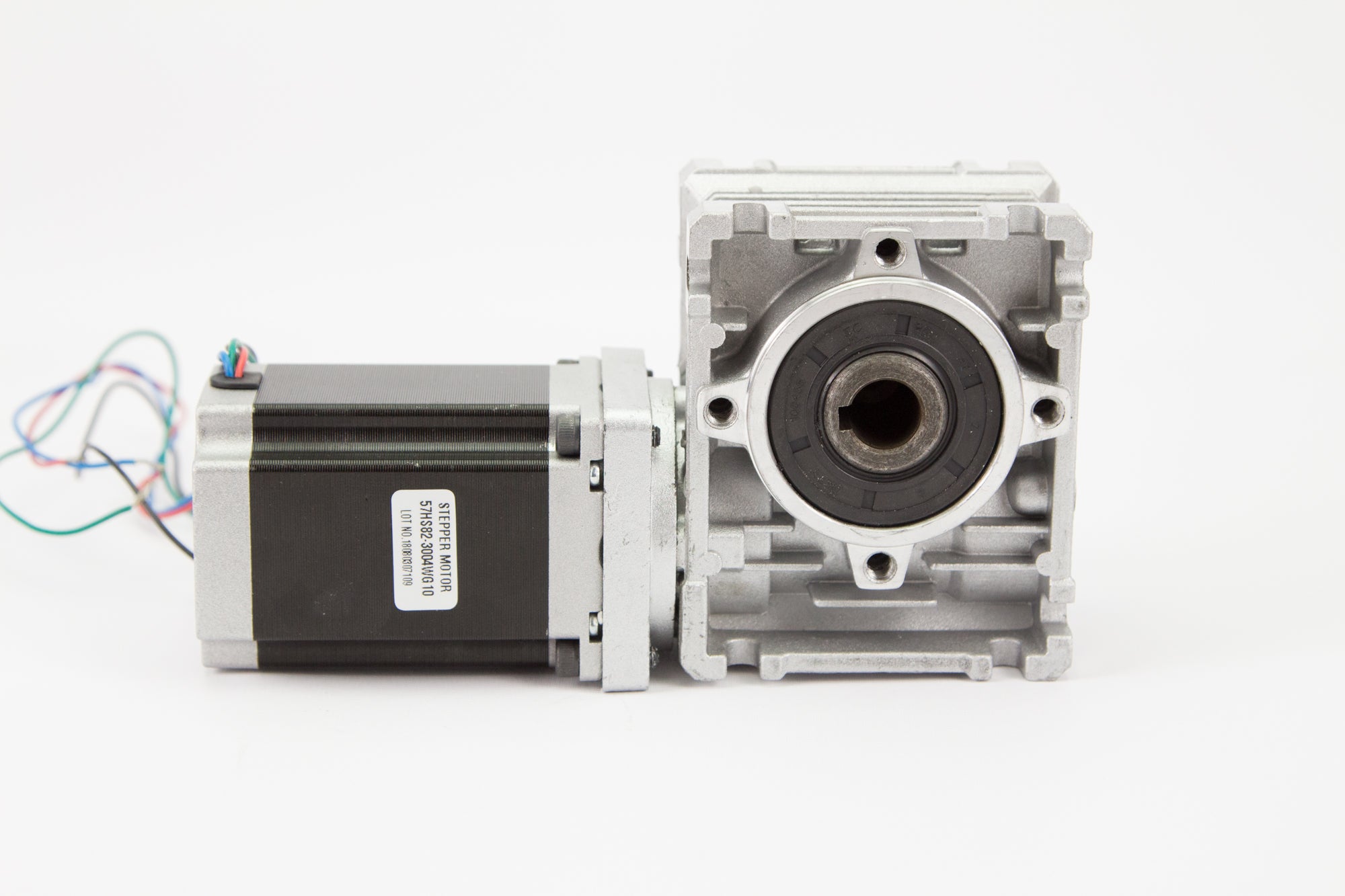

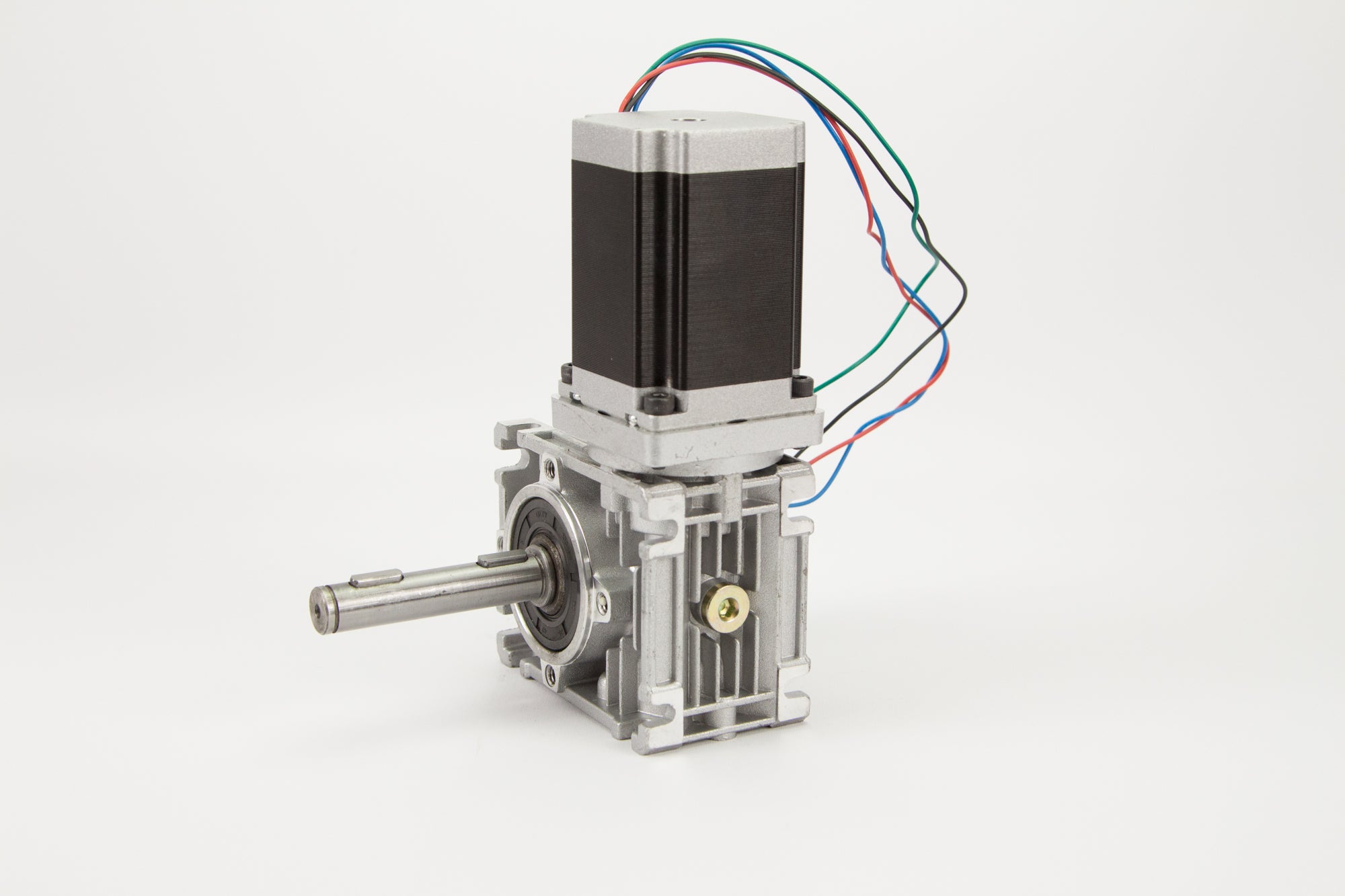

Feature Description of nema23 worm gear stepper motor :
High quality aluminum alloy die cast gearbox
High accuracy worm gear and worm shaft
Less noise and lower temperature increase
Easy mounting and linking, high efficiency
|
Item |
Specifications |
|
Step Angle Accuracy |
1.8 degrees ±5% |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature |
80C max(rated current, 2 phase on) |
|
Ambient Temperature |
-20C~+50C |
|
Insulation Resistance |
100MΩ Min.500VDC |
|
Dielectric Strength |
500VAC/1 minute |
